2" Elbow Hot Forming Machine For Gutter Downspout
with ce/iso/certification, with good words from customers who used our pipe elbow making machine
choose our pipe elbow making machine , make your work easier.

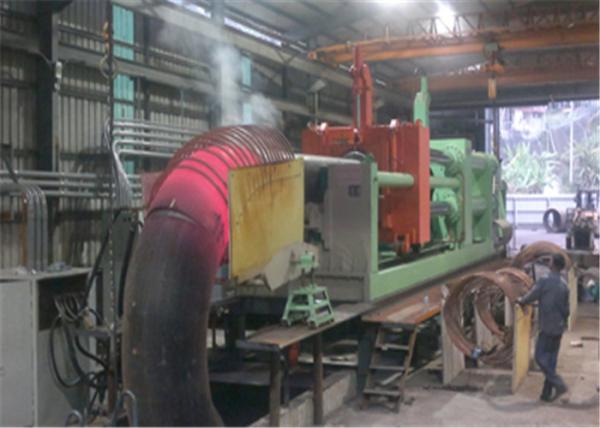

Downspout Carbon Steel Elbow Hot Inducton Heting Forming Machine is primarily used for producing a variety of arm joints in 1D-2.5 D. We might develop as well as produce automated or manual kind according to your demand.
Highlight:
1) It recognizes hydraulic opening as well as closing of the push entrance.
2) Making use of BCT shut cooling system, soft water as cooling medium, not scaling, not obstructing pipe, reduced malfunction.
3) The main valves use international standard Rexroth major products, magnetic valves utilize secure DC 24V managing.
4) The hydraulic pump terminal embrace full closed framework, no leakage, with auxiliary and major fuel storage tank, very easy in upkeep.
5) Digital sign set up in the operation workdesk, keeping an eye on operation temperature level and also hydraulic stress.
6) Electric components adopt Siemens or Schneider items.
main technical parameters:
1. high quality, easy and convenient operation .
2. greatly improve work efficiency .
3. to ensure the high quality of the product.
| Elbow size | outer diameter Φ25mm(1″)~Φ1420mm(56″) |
| Wall thickness | 5~120mm |
| Bent diameter | ≤3 |
| Bent degree | 22.5°,45°,90°,135° etc. |
| Hydraulic cylinder | 2/4sets |
| 1. machine base/frame |
| 2. Main cylinder and supporting plate |
| 3. pushing plate |
| 4. front supporting plate |
| 5. loading table |
| 6. induction coils and adjusting device |
| 7. medium frequency power supply |
| 8. electrical control system |
9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine
|
Downspout Carbon Steel Elbow Hot Inducton Heting Forming Machine can produce butt welded elbows: 1. The range of the size is OD: 1 inch (25mm)- 60 inches (1420mm); Thickness: 5mm – 120mm; Angle: 22.5 degree 45 degree 90 degree 135 degree and the angle of user needs 2. Butt welded elbow machine is composed by: Hydraulic main pushing machine, hydraulic pump, operate panel, control panel of generators, medium frequency, compensating capacitor, water cable, induction coils adjust frame, reactor.
We also supply:
Tee cold forming machine, Long Bends Elbow Induction Heating Bending Elbow Making Machine, induction tube bending machine, elbow chamfer machine, tee beveling machine, reducer beveling machine, pipe&tube processing machine, pipe end facing machine, die mould and mandrills, pipe fittings.
